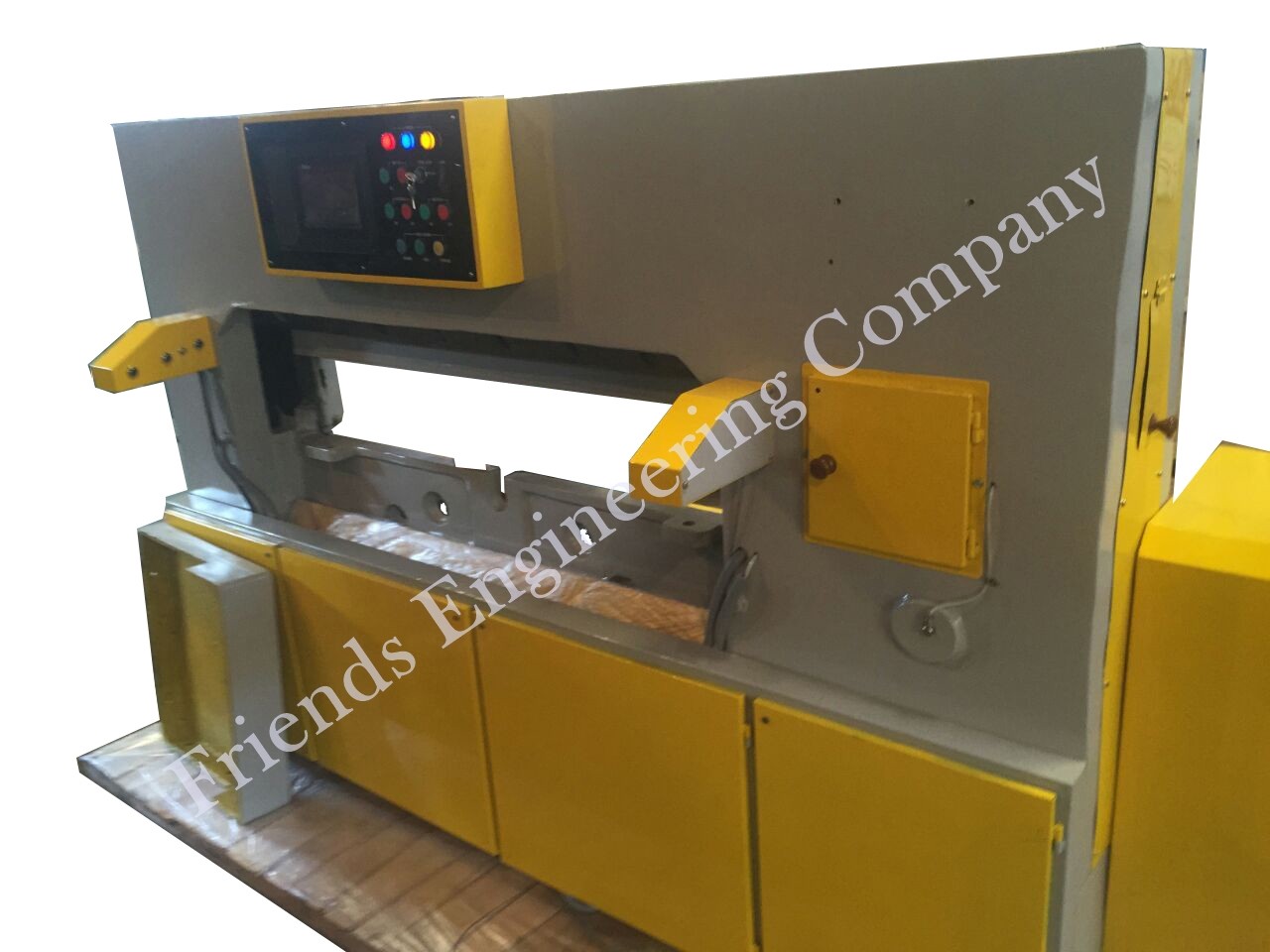

Hydraulic Paper Cutting Machine

Hydraulic Paper Cutting Machine

Friends Brand "Hydraulic Paper Cutting Machine" are distinguished by the same high quality standards which are valid for the construction of Programmable Hydraulic Paper Cutting Machines, Sturdy construction and future-orientated platform for simple workflow integration. This Hydraulic Paper Cutting Machine has more or less same features as Programmable model only the Cutting Length is to be measured by the Operator. This Paper Cutting Machine is furnished with the Double Side Gear having Clutch framework as it is having in wheel additionally at the body side, which stop the odds of machine descending in the wake of cutting and stop any sort of harms.

The Clutch is made of metal and have more life than standard projecting Clutch and furthermore simple to fix in future. Extraordinary Features Manufactured by utilizing high evaluated unrefined substance which gives it long life. All parts are unequivocally fitted. The back check slides in a square notch, guaranteeing smooth cross cutting. Steel Parts are brilliant chrome nickel plated, guaranteeing looks just as life span. The hydraulic paper cutting machine price in India is 3 Lakhs/ Unit.

Features

  • Box type design of parts and high grade material of main parts gives rigidity & long life to the machine.

  • Specially designed electromagnetic clutch & brake unit ensures quick action of knife carrier.

  • Latest hydraulic power pack unit with double pressure cylinder for smooth hydraulic transmission.

  • Infra red photo electric safety device in front of cutting knife.

  • AC drive system for smooth and uniform movement of back gauge.

  • The back gauge is driven by dual speed motor with separate E.M. clutch brake unit mounted on its lead screw.

  • Slot closing belt is provided on main bed of Machine.


    Check our premium product "Die Cutting Machine"

  • Technical Specification

 Model

33”

37”

43”

 Cutting Length

840 mm (33”)

900 mm (37”)

1070 mm (43”)

 Cutting Width

840 mm (33”)

900 mm (37”)

1070 mm (43”)

 Clamp Opening

100 mm (4”)

113 mm (4½”)

125 mm (5”)

 Cuts per Minute (approx)

30

25

20

 Power required

2 H.P.

3 H.P.

3 H.P.

 Power for Motorized Back Gauge

½ H.P.

½ H.P.

½ H.P.

 Machine Dimensions

1650 x 1650 mm
(66” x 66”)

1950 x 1950 mm
(78” x 78”)

2150 x 2150 mm
(86” x 86”)
