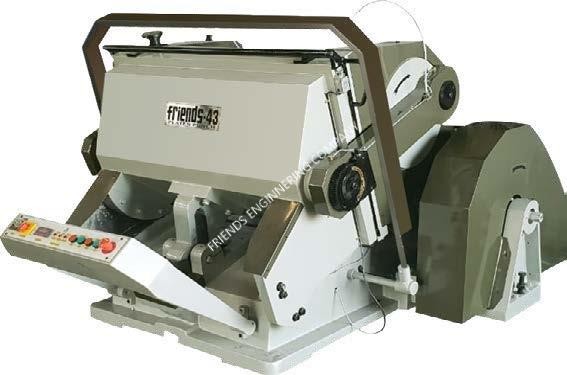

Heavy Duty Die Cutting Machine

Heavy Duty Die Cutting Machine

We use this opportunity to introduce our quality Friends very significant and Heavy Duty Die Cutting Machine that's equipped with Electro-Magnetic Clutch and Brake for straightforward operations. This Platen Die Punching Machine is capable and designed for Die-Cutting, Creasing, Punching, and Embossing Job on various merchandise like Paper, corrugated cardboard, Fiber Board, Vinyl, Foam, Rubber, Leather, Masonite, Cork Sheets, affixed Boxes, Advertising Cut out, Jigsaw Puzzles, Labels, and far more.



This heavy duty die cutting machine is also capable of producing half cuts for stickers. The best sticky label cutting is good therefore, the die blade need to cut through the face paper & the adhesive need to come to forestall simply earlier than the discharge of paper. We have made this job 100% possible by incorporating these hard functions into our Heavy Duty Die Cutting Machine. Furthermore, the Heavy duty die punching Machine that we provide complies with the established business standards. Our valued customers can obtain the Heavy duty die cutting Machine synthetic from us in various sizes based on their requirements.

Features

·         The "Friends" Brand Heavy Duty Platen Punching Machine is designed for die cutting, creasing, and embossing on paper, cardboard, corrugated board, leather, plastic, and pvc, among other materials.

·         Totally standardised and possible to interchange elements as per the requirements.

·         All shafts are made of EN grade metal, pins are grounded, and trees are made of Phosphorus Bronze Alloy.

·         All bearings are of the highest quality from SKF/NBC/NACHI.

·         Machine with fail-safe combination clutch brakes and adjustable machine (up to microns).

·         The main driving shaft is equipped with units of double helical self-lubricated imported polyamide/metal pinion.

·         The main electric powered panel (operation and management) is outfitted with Detachable Socket System with international standardised additives such as Siemens/L&T/Schneider (France), etc.

·         Self diagnostic gadget software with visual indications

·         Main flywheel is locked with check-nut machine.

·         Fully Automatic Centralized Lubrication System is provided.

·         Easy adjustable features of impressions is created through 2 worm gears and eccentric bushes within the cam for left-right and up-down of platen to make the four corners equal.

·         Machine has quite silent running and outlook is great with very best quality paint and powder coated fitting.

·         “Friends” quickest Platen Opening 87” to supply press Operator adequate Time to feed delivering more productivity.

·         All of the features that make the "Friends" Platen Punching Machine the most simple, dependable, and maintenance-free.

  • Technical Specification

ModelFriends - 28Friends - 35Friends - 40Friends - 43Friends - 46Friends - 54Friends - 57Friends - 66Friends - 68Friends - 76Friends - 85Friends - 95
Platen Size (in)22×2825×3528×4032×4336×4640×5443x5746×6648x6856×7655×8555×95
Inside Chase (in)20×2622×3225×3729×4033×4337×5140x5443×6345x6553×7352×8252×92
Platen Size (cm)56×7163×8871×10181×10991×116101.6×137109x145116×167122x173142×193140×216140×241
Inside Chase (cm)51×6656×8164×9473×101.583×10994×130102x137109×160114x165134×185132×208132×233
H.P. Reqd.33557.57.5101015151520
Impr/hr1800170015001400130011001000950900800750700
Wt. approx. (Tons)2.753.754.254.755.56.57.59.510.513.515.518
Area reqd. (cm)188×150×157188×167×147198×188×152196×188×160233×198×167228x208x180235×223×195241×241×203245x245x207267×267×218267×292×218267×317×278
Area reqd. (in)
74×59×6274×66×58
78×74×60
77×74×63
92×78×66
90×82×71
93×88×77
95×95×80
97x102x88
105×105×86
105×115×86
105×125×110
