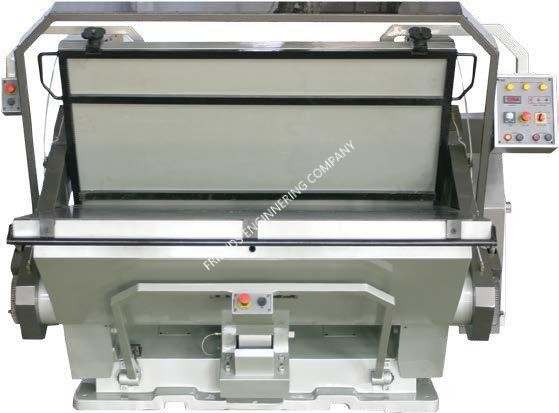

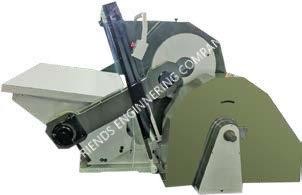

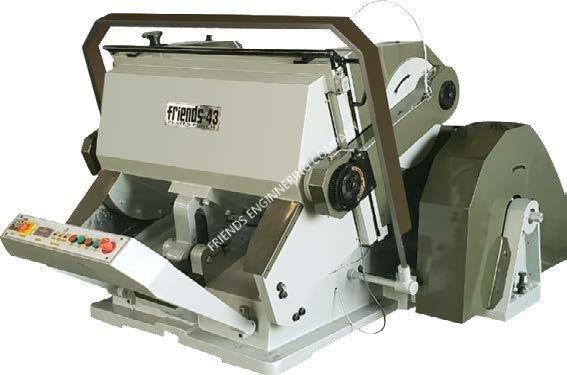

Die Cutting and Creasing Machine

Die Cutting and Creasing Machine

We originate our quality Friends Die Cutting and Creasing Machine that's equipped with Electro-Magnetic Clutch and Brake for straightforward operations. Manufactured from the most effective quality raw materials, hierarchical elements, this  Die Cutting and creasing Machine is capable and designed for Die-Cutting, Creasing, Punching and Embossing Job on varied product like Paper, Card Board, cardboard, Fiber Board, Vinyl, Foam, Rubber, Leather, Masonite, Cork Sheets, affixed Boxes, Advertising Cut out, Jigsaw Puzzles, Labels and far additional. Die Cutting Machine also have sweet box making machine.

Our Machine may also give half cuts for stickers along with creasing on various products. Machine Produces Accurate results in sticker cutting so, the die blade ought to traverse the face paper & the adhesive ought to come back to prevent simply before the discharge of paper. We have a tendency to create it completely possible attainable by introducing these options in our Die Cutting and creasing Machine. Additionally to the present, the Die Cutting and creasing Machine that we provide complies with the set industrial standards. Our valued shoppers will avail the Platen Die Punching Machine factory-made in varied sizes as per their desires.

Features

  • “Friends” complete significant Duty Platen Punching Machine is intended for Die Cutting, Creasing & Embossing on Paper, Card Board, cardboard, Leather, Plastic and P.V.C. etc
  • Totally standardized (i.e. all components square measure inter-changeable)
  • All shafts measure from linear unit Grade steel and pins  measure grounded & bushes from Phosphorus Bronze Alloy.
  • All bearings measure of SKF/NBC/NACHI solely.
  • Fail-safe combination clutch brakes machine with adjustable machine (up to microns).
  • The major driving shaft is ready with units of double helical self-lubricated imported polyamide/metal pinion .
  • Self diagnostic gadget software with visual indications
  • The main electric powered panel (operation and management) is outfitted with a Detachable Socket System and international standardised additives such as Siemens/L&T/Schneider (France) and among others.
  • Main flywheel is locked with check-nut machine.
  • Fully Automatic Centralized Lubrication System is provided.
  • Easy adjustable features of impressions is created through 2 worm gears and eccentric bushes within the cam for left-right and up-down of platen to make the four corners equal.
  • Machine has quite silent running and outlook is great with very best quality paint and powder coated fitting.
  • “Friends” quickest Platen Opening 87” to supply press Operator adequate Time to feed delivering more productivity.
  • All of the characteristics that render the "Friends" Platen Punching Machine the most reliable and maintenance free equipment.
  • Technical Specification

ModelFriends - 28Friends - 35Friends - 40Friends - 43Friends - 46Friends - 54Friends - 57Friends - 66Friends - 68Friends - 76Friends - 85Friends - 95
Platen Size (in)22×2825×3528×4032×4336×4640×5443x5746×6648x6856×7655×8555×95
Inside Chase (in)20×2622×3225×3729×4033×4337×5140x5443×6345x6553×7352×8252×92
Platen Size (cm)56×7163×8871×10181×10991×116101.6×137109x145116×167122x173142×193140×216140×241
Inside Chase (cm)51×6656×8164×9473×101.583×10994×130102x137109×160114x165134×185132×208132×233
H.P. Reqd.33557.57.5101015151520
Impr/hr1800170015001400130011001000950900800750700
Wt. approx. (Tons)2.753.754.254.755.56.57.59.510.513.515.518
Area reqd. (cm)188×150×157188×167×147198×188×152196×188×160233×198×167228x208x180235×223×195241×241×203245x245x207267×267×218267×292×218267×317×278
Area reqd. (in)
74×59×6274×66×58
78×74×60
77×74×63
92×78×66
90×82×71
93×88×77
95×95×80
97x102x88
105×105×86
105×115×86
105×125×110
